H6 Ground Tungsten Carbide Rods 3mm - 26mm

Brand Name : JWE

Model Number : JI10/JF10/JF12

Certification : ISO9001:2005

Place of Origin : China

MOQ : 5 Kilograms

Price : $56/kgs

Payment Terms : D/P, T/T, Western Union

Supply Ability : 1000 Tons/Year

Delivery Time : 10-15 work days

Packaging Details : 41cm*20cm*12cm

Material : 100% Virgin Tungsten Carbide

Grade : ISO K10-K40

Surface : Unground or H6 Ground

Application : End mill, Drill, Reamer

Feature : Durable, Long service life, Resistance

Warranty : More than 5 years

Color : Silver Gray

Chemical composition : Tungsten Carbide

Contact Now

Tungsten Carbide Rods Ground and Unground

Product Introduction

The Tungsten Carbide Rods, are used in high quality carbide cutting tools for the machining of heat-resistant alloys and Ti alloy, such as end mill, drill, reamer, taps, ect.

1. Grade: ISO K10-K40
2. Did: 0.4 mm-40 mm
3. Length: 330 mm
4. Surface: Unground or H6 Ground

Carbide Rods with Single Hole

Unit: mm

Other custom size could be discussed.

D	L	B	Tolerance
3.0	300/310/330	0.3	±0.1
4.0	300/310/330	0.6	±0.1
6.0	300/310/330	1	±0.15
8.0	300/310/330	1.3	±0.15
10.0	300/310/330	2	±0.2
12.0	300/310/330	2	±0.2
14.0	300/310/330	2	±0.2
16.0	300/310/330	2	±0.2
18.0	300/310/330	3	±0.25
20.0	300/310/330	3	±0.25
22.0	300/310/330	3	±0.25
24.0	300/310/330	4	±0.3
26.0	300/310/330	4	±0.3
28.0	300/310/330	4	±0.3
30.0	300/310/330	5	±0.35

Carbide Rod With Two Straight Holes

Unit: mm

D	L	B	Tolerance	TK	Tolerance
3.0	300/310/330	0.4	±0.1	1.52	±0.08
4.0	300/310/330	0.8	±0.1	1.72	±0.08
5.0	300/310/330	0.8	±0.1	1.92	±0.08
6.0	300/310/330	1.0	±0.1	2.90	±0.1
7.0	300/310/330	1.0	±0.15	3.40	±0.1
8.0	300/310/330	1.0	±0.15	3.85	±0.15
9.0	300/310/330	1.4	±0.15	3.85	±0.15
10.0	300/310/330	1.4	±0.15	4.85	±0.15
11.0	300/310/330	1.4	±0.15	4.85	±0.15
12.0	300/310/330	1.8	±0.15	5.85	±0.15
13.0	300/310/330	1.8	±0.15	5.85	±0.15
14.0	300/310/330	1.8	±0.15	6.85	±0.15
15.0	300/310/330	2.0	±0.2	6.85	±0.15
16.0	300/310/330	2.0	±0.2	7.85	±0.15
17.0	300/310/330	2.0	±0.2	7.85	±0.15
18.0	300/310/330	2.0	±0.2	8.85	±0.15
19.0	300/310/330	2.0	±0.2	8.85	±0.15
20.0	300/310/330	2.5	±0.25	9.80	±0.2
21.0	300/310/330	2.5	±0.25	9.80	±0.2
22.0	300/310/330	2.5	±0.25	10.80	±0.2
23.0	300/310/330	2.5	±0.25	10.80	±0.2
24.0	300/310/330	3.0	±0.25	11.75	±0.25
25.0	300/310/330	3.0	±0.25	11.75	±0.25
26.0	300/310/330	3.0	±0.25	12.75	±0.25

Carbide Rod with Helix Holes

Unit: mm

D	L	B	Tolerance	TK	Tolerance	Pitch ±0.5°
3.0	300/310/330	0.4	±0.1	1.6	±0.1	16.32
4.0	300/310/330	0.6	±0.1	2.1	±0.1	21.77
5.0	300/310/330	0.7	±0.1	2.4	±0.2	27.21
6.0	300/310/330	0.7	±0.1	2.4	±0.2	32.65
7.0	300/310/330	1	±0.15	3.5	±0.2	38.09
8.0	300/310/330	1	±0.15	3.8	±0.2	43.53
9.0	300/310/330	1.4	±0.15	4.5	±0.3	48.97
10.0	300/310/330	1.4	±0.15	4.5	±0.3	54.41
11.0	300/310/330	1.4	±0.15	4.9	±0.4	59.86
12.0	300/310/330	1.4	±0.15	5.85	±0.4	65.3
13.0	300/310/330	1.75	±0.2	6.1	±0.4	70.74
14.0	300/310/330	1.75	±0.2	6.7	±0.4	76.18
15.0	300/310/330	1.75	±0.2	7.3	±0.4	81.62
16.0	300/310/330	1.75	±0.2	7.9	±0.4	87.06
17.0	300/310/330	1.75	±0.2	8.5	±0.4	92.5
18.0	300/310/330	2	±0.25	9.15	±0.4	97.95
19.0	300/310/330	2	±0.25	9.7	±0.4	103.39
20.0	300/310/330	2	±0.25	9.9	±0.5	108.83
22.0	300/310/330	2	±0.25	11.1	±0.5	125.15
25.0	300/310/330	2	±0.25	12.8	±0.5	136.05

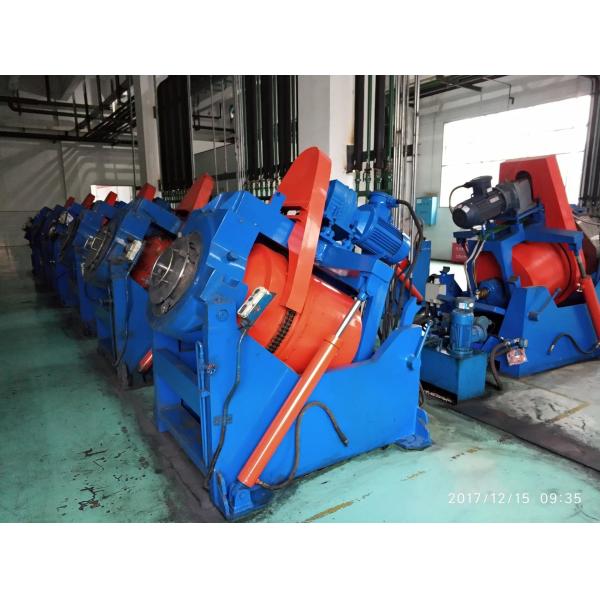

Production Equipments:

H6 Ground Tungsten Carbide Rods 3mm - 26mm

Production and Test of Tungsten carbide Rods:

1. The mixture of carbide powders will start to prepare as per the customer’s requirement with our wet-grinding machine.
2. Before mass production, we need to do a trial pressing and sintering, and we check the appearances and the sizes of the samples with a micrometer to ensure that the requirements of the drawings can be met before batch production
3. Bulk production, press the raw materials to shape blanks, and carbide tips must be passed by semifinished inspection.
4. sinter blanks to finish (HIP) and finished products' inspection to ensure the best quality and production capacity.

Quality Control:

1. Each rod will be a drop from a 1.2 m high place.
2. All raw materials are tested in terms of density, hardness, and TRS before use.
3. Every piece of product goes through in-process and final inspection.
4. Every batch of product can be traced for our management system.
