38 Shank System Round Shank Bits For Tunnelling Excavation Application
The H35C series is our high cost-effective products. The 35 mm diameter carbide buttons keep a longer wear resistance, while working under normal condition, to improve work efficiency and reduce the loss of equipment and accessories, appropriate ventilation and dust removal are recommended.
Advantages:
1. The carbide is imported virgin raw materials with high wear resistance after secondary high temp soldering.
2. The process manner of the bit body is cold extrusion, which is ensuring the high toughness.
3. The wear-resistant layer of the bit body is optional to prolong the service life of the pick, reduce the frequency of pick replacement and equipment maintenance, thereby reducing the mining cost and improve the ore mining output.
Product Demonstration:
Conical Carbide Buttons prevent breakage from sudden impact under excavation conditions.
Slim body shape keeps the effective penetration with lower cost per ton of excavated material.
Advantages:
1. Alloy steel body is made by material 42CrMoA, heat treatment with HRC38-42 hardness, has high toughness and wearable character.
2. Tungsten carbide button is suitable grade selected according to target projects, which are to make sure the good performance during working.
3. The products adapt to the machine with all the performance features, such as a high feed rate, a long service life and short tools changing time. The round shank bits are suitable for 38, 42 shank tooth holders of cutting heads from various equipments manufacturers.
Size:
Watch the below video to see what the round shank cutter bit actually looks like.

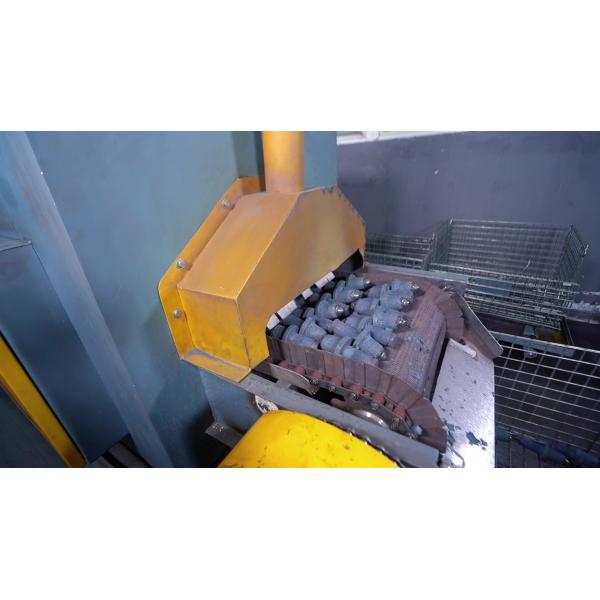

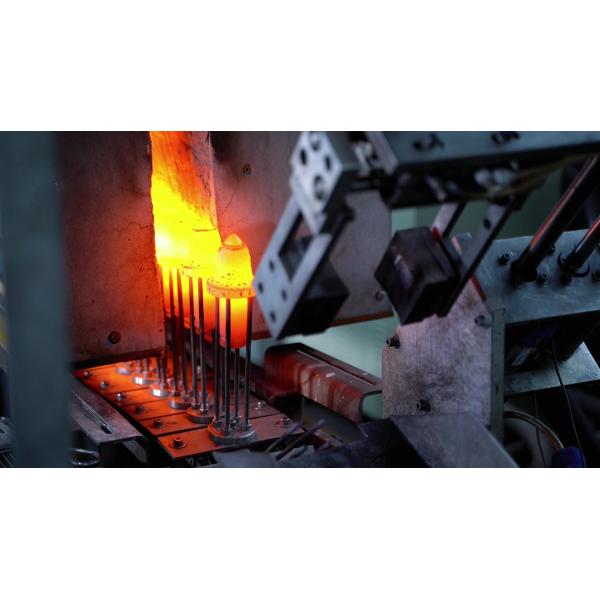

Production overview:
Product Packaging
10 pieces in each box, ensure mobilization on site or confined spaces.
Product Tags:
|
|
38 Shank System Round Shank Bits For Tunnelling Excavation Application Images
|
